X-Ray PCB Inspection Services

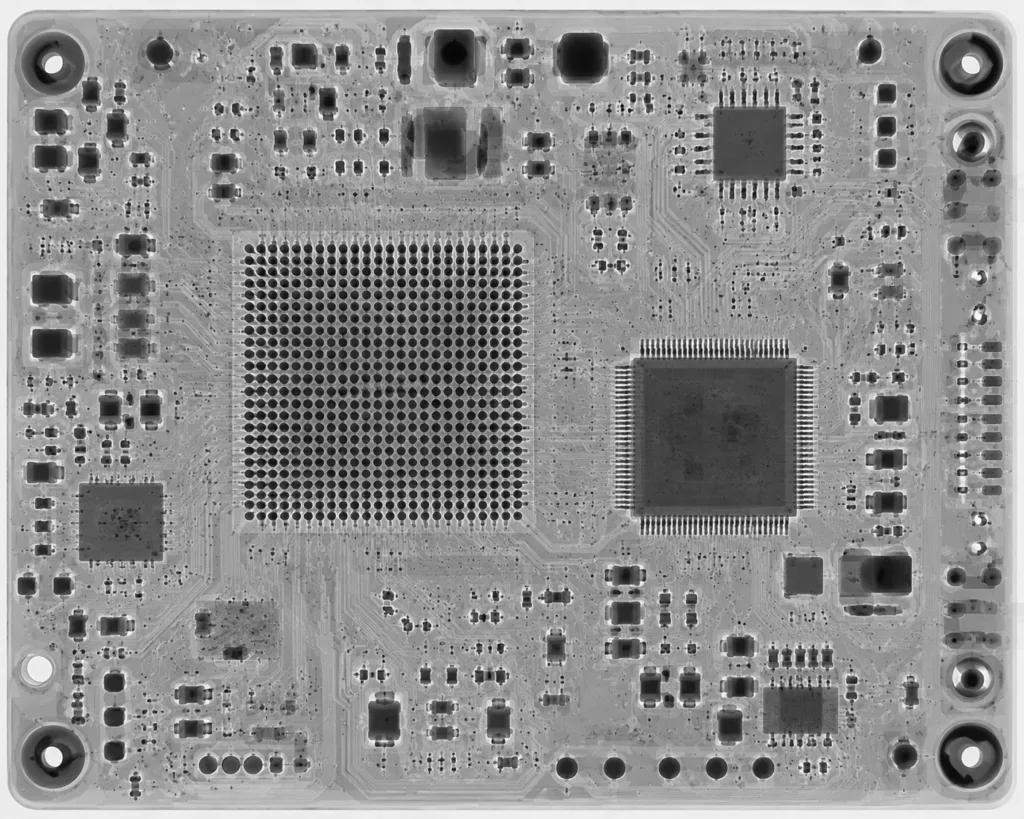

DFYC uses X-ray inspection technology to check solder defects and inspect the connection between BGA balls and PCB pads. This helps us find hidden assembly issues that cannot be seen from the surface. X-ray inspection is also part of our PCB assembly quality control process, helping us improve product reliability and meet customer quality requirements.
Overview of DFYC’s X-Ray PCB Inspection Services

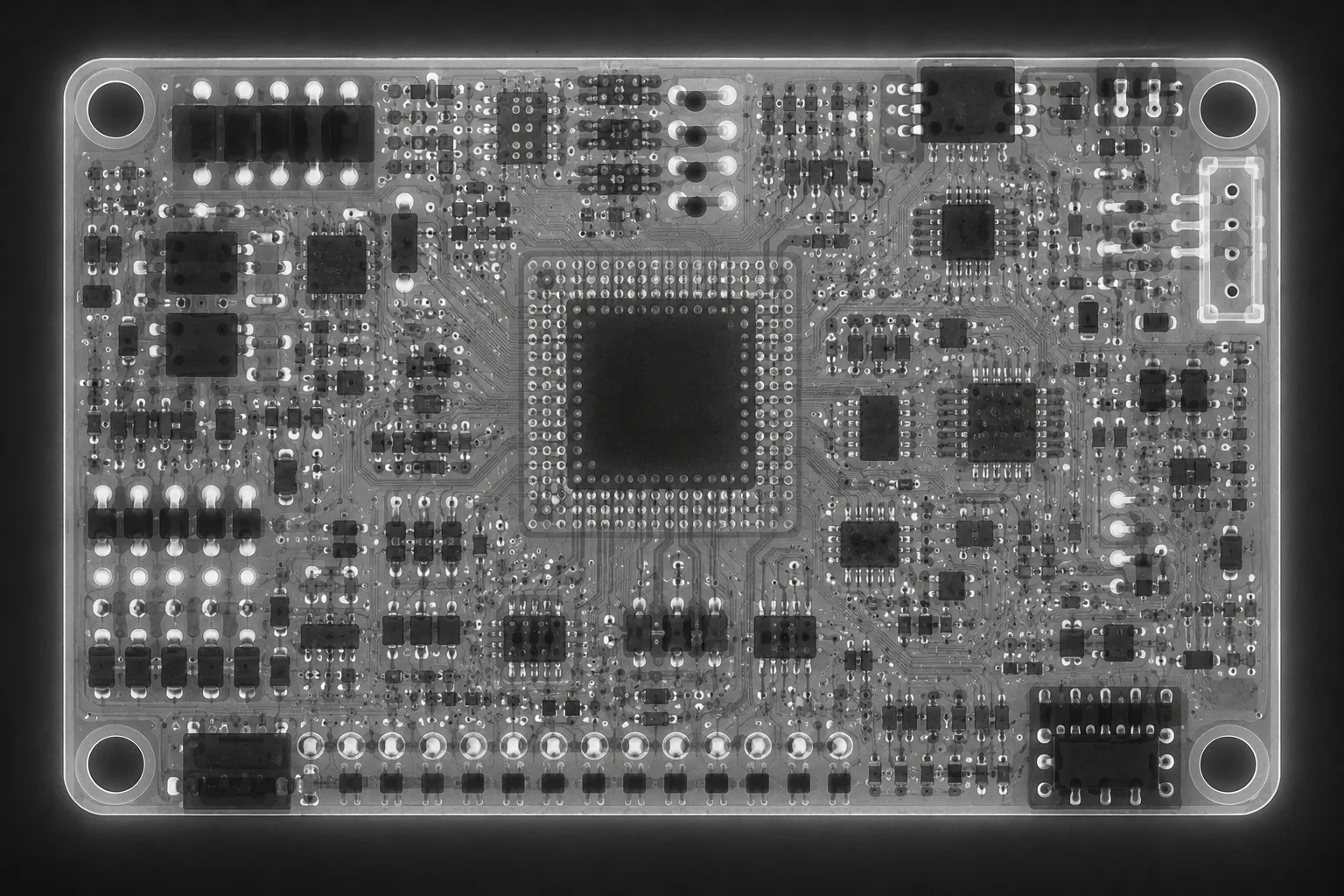

DFYC uses advanced 3D X-ray inspection technology to check PCB assemblies with speed, accuracy, and consistency. This inspection process helps detect hidden solder defects, BGA connection issues, and voids that are difficult to see from the surface. With reliable X-ray PCB inspection, we support better quality control and help improve the reliability of each assembled board.
AOI vs. X-Ray PCB Inspection
AOI checks the surface of a PCB assembly from above. It helps inspect solder joint quality, component placement, polarity, and visible assembly defects. X-ray PCB inspection is used to check hidden solder defects and internal connections, especially under BGA, QFN, and other bottom-terminated components.
Applications for X-Ray PCB Inspection
X-ray inspection is commonly used in PCB and PCBA projects across a wide range of industries, including:
- Industrial Control
- Electric Vehicles (EV)
- Communication Equipment
- Optical Modules
- Servers and AI Servers
- Medical Electronics
- Consumer Electronics
- Smart IoT Devices
- Power Management Systems
- Embedded Computing Platforms
DFYC Is the PCB Partner You Can Count On
PCB technology is always changing, so DFYC continues to improve our equipment, processes, and inspection capabilities, including X-ray PCB inspection. Our engineering team supports customers from the early stage of each project and gives practical advice on PCB type, materials, stack-up, and design for manufacturability.
DFYC provides reliable PCB layout, PCB manufacturing, PCB assembly, and quality inspection services for custom electronics projects. Contact us today if you need more information or have questions about your PCB and PCBA project.
Need a Quote?
After receiving your project files, our engineering team reviews the design data, manufacturing requirements, and assembly specifications to ensure an accurate quotation and smooth production process. For most projects, we can provide a detailed quotation within 24 hours after receiving complete information.
