HDI PCB Fabrication & Manufacturing
HDI PCB Manufacturing for Complex, High-Density Designs
Topline Circuit manufactures HDI PCBs for compact electronic products that require fine-pitch components, dense routing, and reliable interlayer connections. HDI technology uses microvias, blind and buried vias, and thin trace and spacing designs to place more functions within a smaller board area.
HDI PCBs are widely used in medical devices, communication equipment, industrial control systems, automotive electronics, smartphones, tablets, and other space-constrained products.
Our engineering team reviews the stack-up, microvia structure, materials, impedance requirements, and manufacturing files before production. This helps improve manufacturability and supports reliable PCB fabrication and assembly for complex HDI designs.
HDI PCB Manufacturing Capabilities

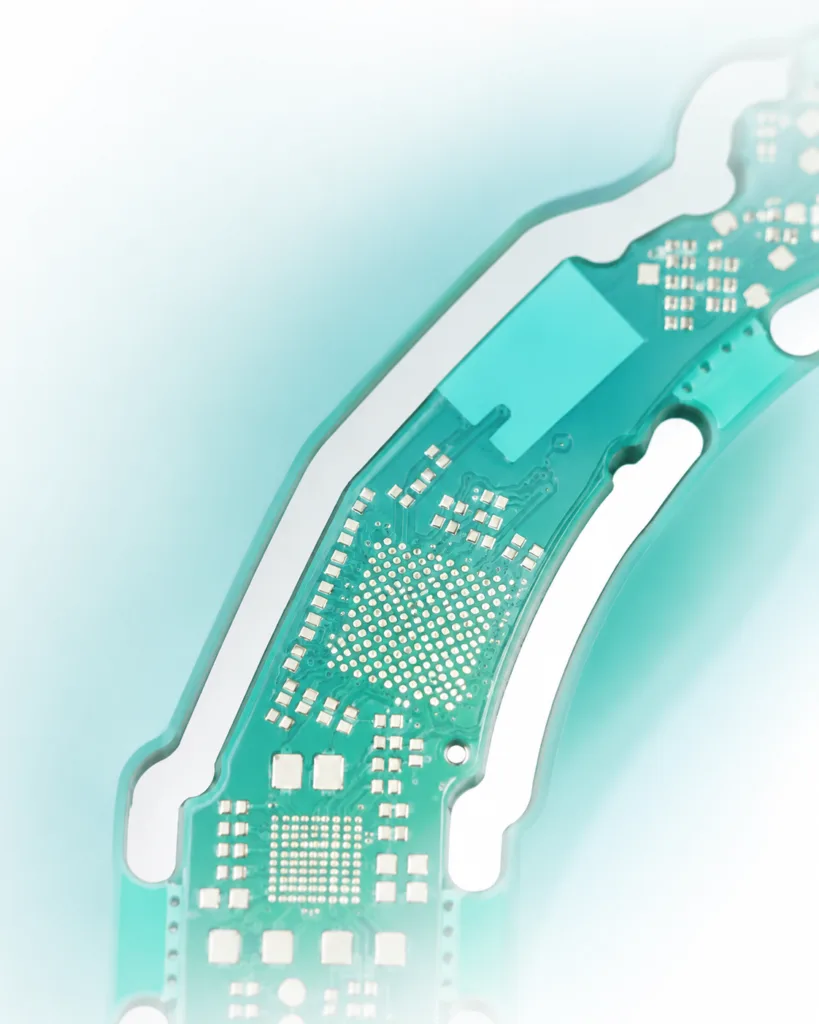

HDI PCBs use fine lines and spaces, high-density routing, and compact interconnections to fit more functions into a smaller board area. Common HDI structures include blind and buried vias, laser-drilled microvias, sequential lamination, and via-in-pad designs.
Topline Circuit supports complex HDI fabrication through controlled imaging, drilling, plating, lamination, and registration processes. Our engineering team reviews the stack-up, microvia structure, trace and spacing requirements, and manufacturing data to improve manufacturability and support reliable production.
Additional HDI PCB Capabilities
Our engineering team works with a wide range of PCB materials and HDI structures. We review material selection, stack-up, via design, hole requirements, and other cost drivers to improve manufacturability before production.
- Back Drilling – Removes unused plated-through-hole stubs to reduce signal reflections and improve signal integrity in high-speed PCB designs.
- Controlled-Depth Drilling and Milling – Creates holes, cavities, or other features at a specified depth without affecting the underlying layers.
- Buried Capacitance – Uses thin dielectric layers between power and ground planes to provide distributed capacitance, reduce electrical noise, and support signal integrity.
-
Tight Hole Tolerances – Controlled drilling and registration help maintain accurate hole sizes and positions for vias, component leads, and through-hole connectors.
-
Fine-Pitch Designs – Supports compact component layouts and dense routing for fine-pitch packages, including designs with pitches down to 0.3 mm where the board structure and assembly requirements allow.
HDI and Laser Direct Imaging Technologies

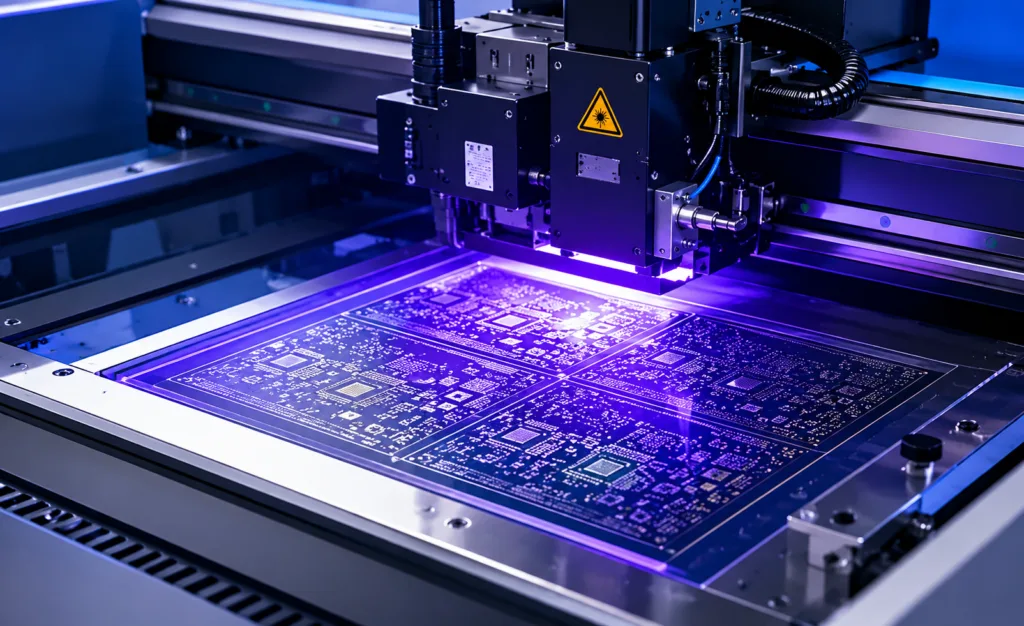

Topline Circuit uses laser direct imaging (LDI) to produce fine traces, tight spacing, and accurate layer patterns for HDI PCBs. Laser processing also supports microvias, blind vias, buried via structures, laser-ablated openings, and precision routing for flexible circuits.
We support the complete process from PCB layout and DFM review to fabrication and assembly. Our engineers review the stack-up, microvia structure, materials, registration, and assembly requirements to improve manufacturability and control potential cost drivers.
Why Choose Topline Circuit?
- Engineering support for complex HDI PCB designs
- DFM review of stack-ups, microvias, fine lines, and via-in-pad structures
- PCB fabrication and assembly support from one supplier
- Process control across drilling, plating, lamination, imaging, and testing
- Material and design review based on electrical, thermal, and assembly needs
- Support for prototypes and production orders
- Clear communication throughout the project
HDI PCB Fabrication Tolerances
Design & Test
Lamination
Depending on layer count
Drill & Route
Tighter tolerances available
Need a HDI PCB Quote?
